Cash Drawer Command Setup for Windows

  • Updated:

This article will show you how to ensure that the printer sends a cash drawer kick command.



Windows 10 Instructions

  1. Select the Windows start icon in the bottom left of the screen.
    windows icon start.png

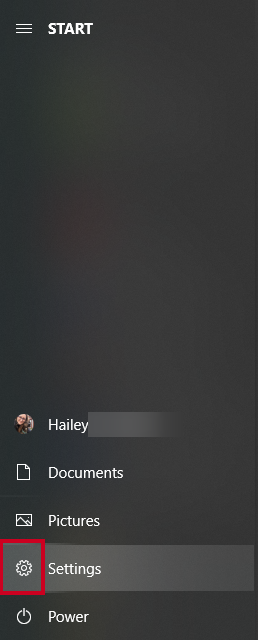

  2. Select the Settings tab
    Windows Start Settings.png

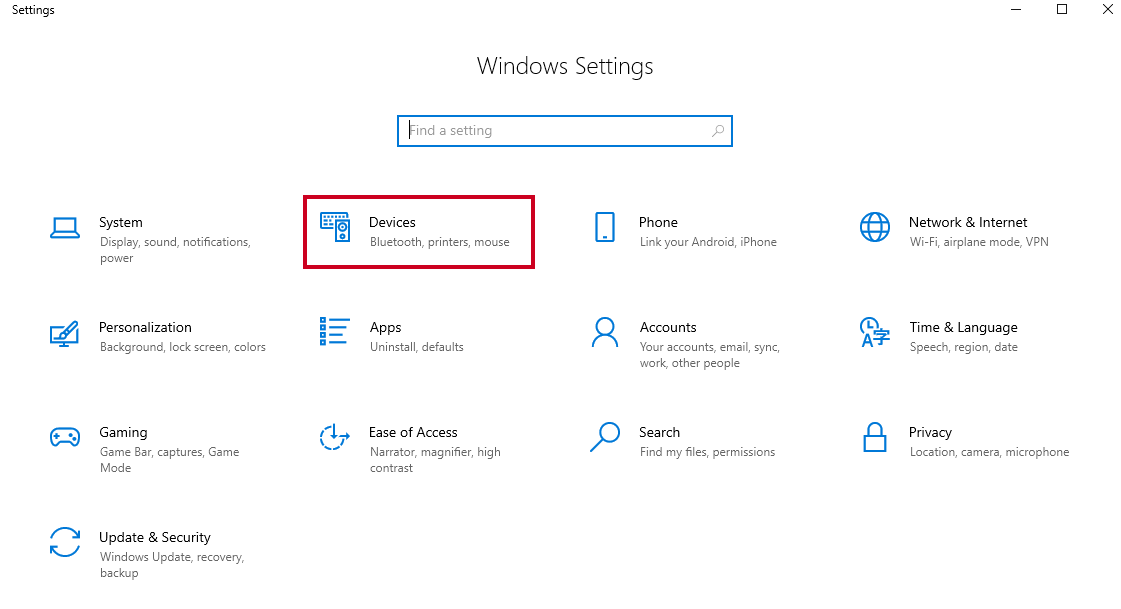

  3. Select Devices
    Windows Settings Devices.png

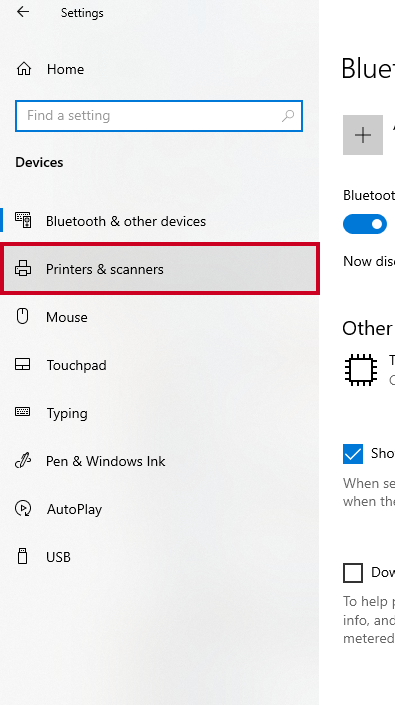

  4. Select the Printers & Scanners tab in the left menu.
    Windows Settings Printers and Scanners.png

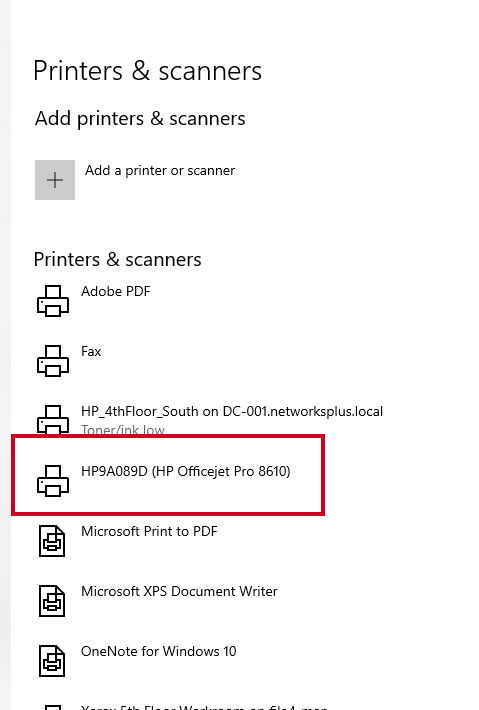

  5. Find the printer you want to configure and click on it.
    Windows Select Printer.png

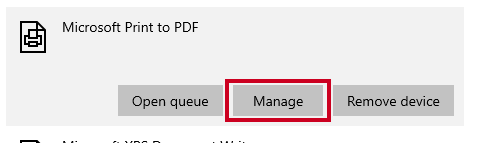

  6. Click the Manage button.
    Windows Printer Manage.png
  7. Select Printer Properties on the left.
    Windows Printer Properties.png

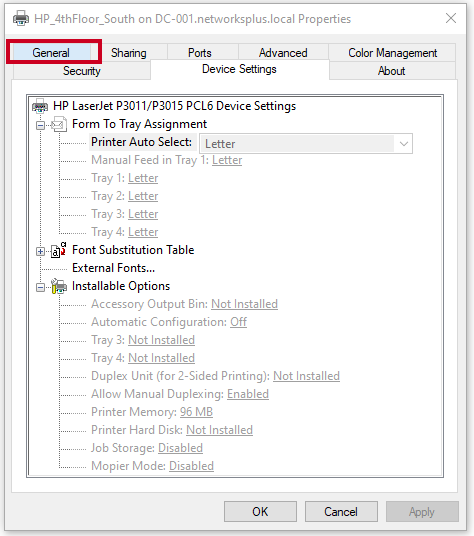

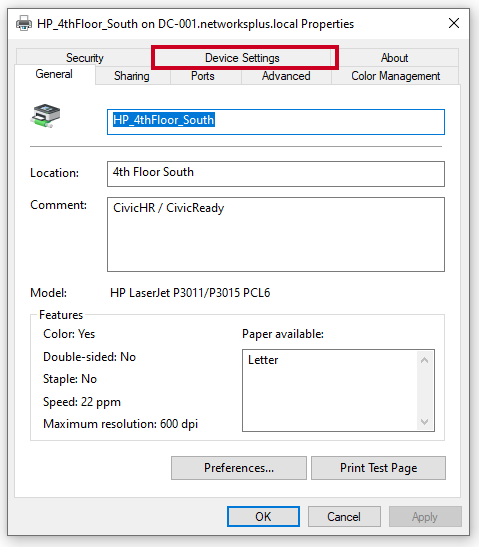

  8. Click the Device Settings Tab on the pop-up window.
    Windows Printer Device Settings Tab.png
  9. Select Cash Drawer under Peripherals; set both cash drawers to document top.
  10. Select OK
  11. Click the General Tab.
    Windows Printer Properties General Tab.png

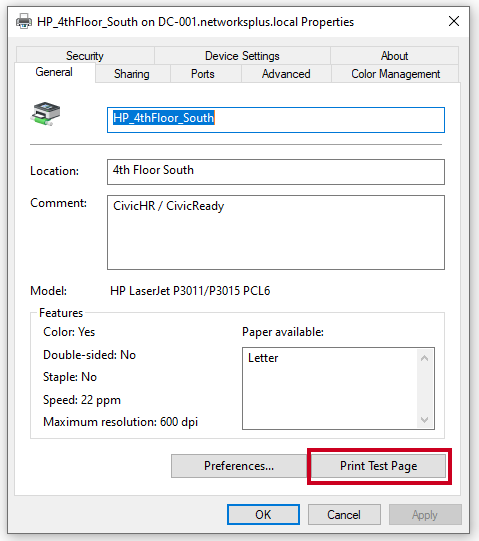

  12. Click the Print Test Page button.
    Windows Printer Properties Print Test Page Button.png
  13. Your cash drawer should open upon printing; if it does now you may need to troubleshoot cash drawer connectivity.
